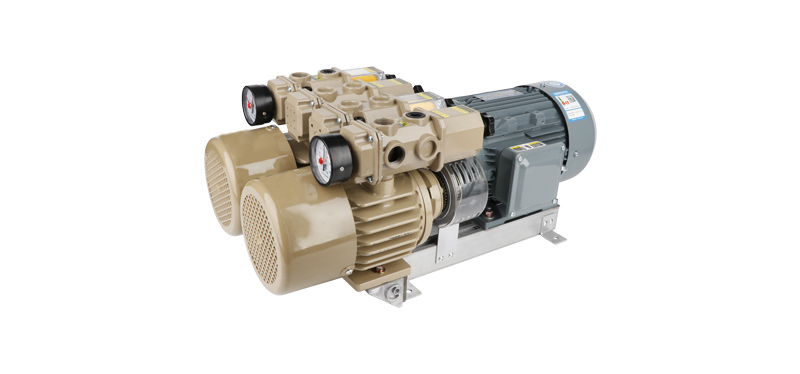

PNK CRP 120 Carbon vacuum pumps
PNK CRP 120 Carbon vacuum pumps

PNK CRP-C series carbon plate vacuum pump

Modal: PNK CRP 120 Carbon vacuum pumps

Due to its double air cylinder and multiple functions(Vacuum pump and blowers),this carbon plate vacuum pump can be used independently as vacuum source with vacuum degree under 60kpa and air source with exhaust pressure under 60kpa.

The pump is small in size, light in weight and easy to operate.

Motor power:    4.0Kw

Exhaust gas:   1500L/min

Vacuum degree:     60kpa

Do you want to know more?

If you need more product documents and data, please contact us directly at CANKER.

Technical parameterUnitFrequencyPNK CRP 120
Rotate speedrmp
1430
Design degassing amountL/min50 Hz1500
Normal vacuumkpa
60
Common exhaust volumekpa
60
Pipe connector"
RC1
PowerV50 Hz200/380(Triple phase)
Loading motorKw
4.0
Weightkg
120

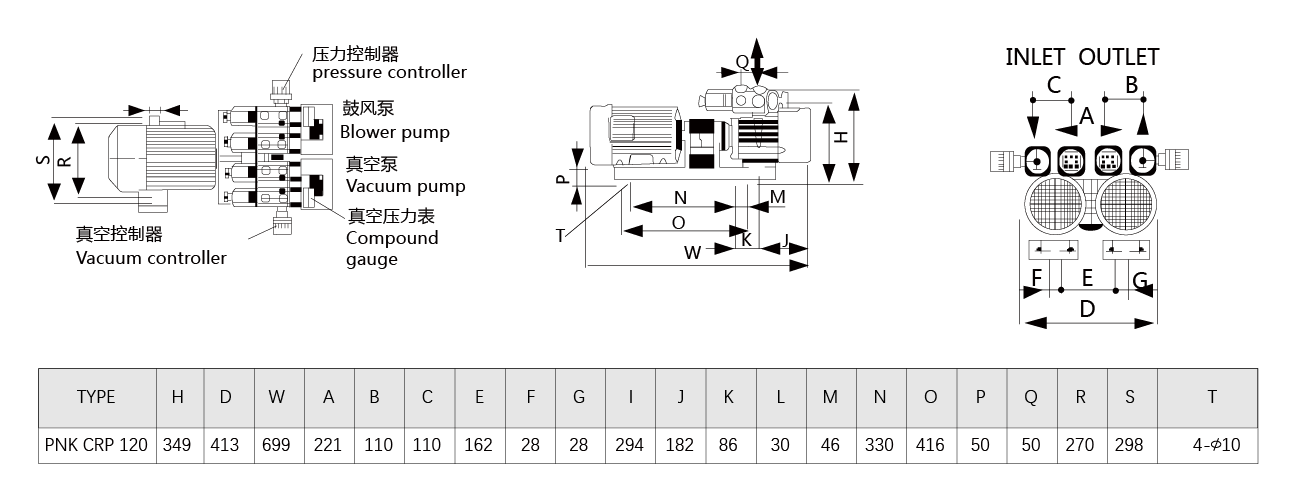

PNK CRP-C120碳片真空泵.png

PNK CRP-C120碳片真空泵.png

PNK CRP 120 Carbon vacuum pumps
