PNK DP-C series double stage rotary vane pump
Test-proven high quality double stage rotary vane pump with comprehensive accessories and long service life.
Motor power(50Hz): 7.5Kw

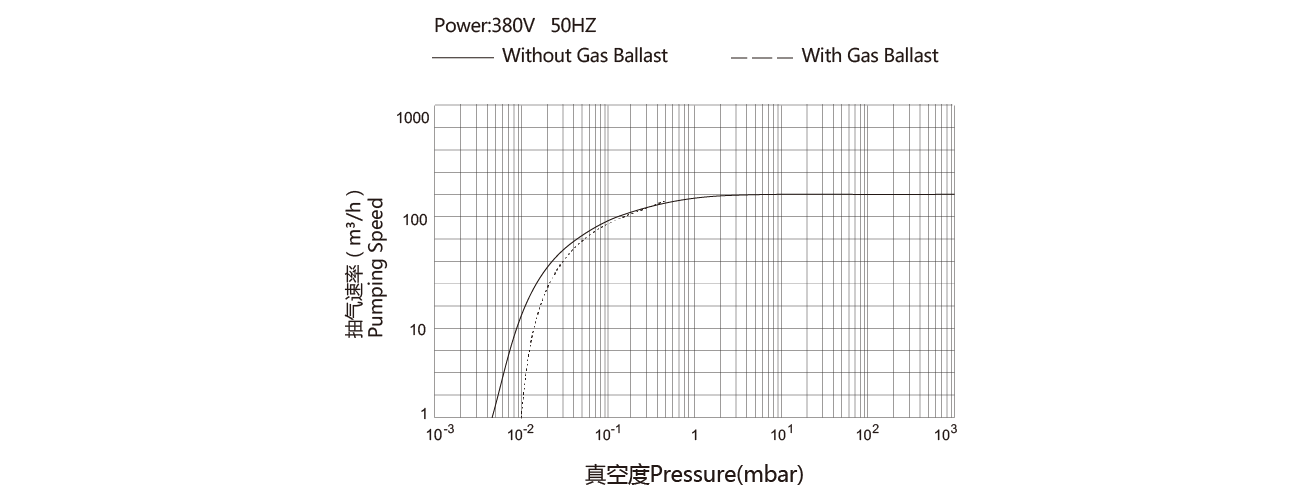

Pumping speed (50/60Hz): 275m³/h/306m³/h
Limit vacuum: 5.0×10-3mbar
Do you want to know more?
If you need more product documents and data, please contact us directly at CANKER.
| Technical parameter | Unit | Frequency | PNK DP 275C |
|---|---|---|---|
| Pumping speed | m3/h | 50 Hz | 275 |
| 60 Hz | 306 | ||
| Limit partial pressure | mbar | 50 Hz | 1.0×10-3 |
| Limit total pressure | mbar | 50 Hz | 5.0×10-3 |
| Open limit total pressure | mbar | 50 Hz | 1.0×10-2 |
| Water vapor permitted tolerance | mbar | 50 Hz | 20 |
| Nomimal size | DN（mm） | 50 Hz | KF50 |
| Voltage | V | 50 Hz | 220-240/380-415 |
| 60 Hz | 220-280/380-440 | ||
| Power | Kw | 50 Hz | 7.5 |
| Current | A | 50 Hz | 28.9/16.7 |
| 60 Hz | 29.7/17.3 | ||
| Speed | r/min | 50 Hz | 1400/1410 |
| 60 Hz | 1680/1710 | ||
| Noise | (ENISO2151) | dB(A) | 75 |
| Oil filling quantity | L | 23/28 | |
| Weight | kg | 255 |
