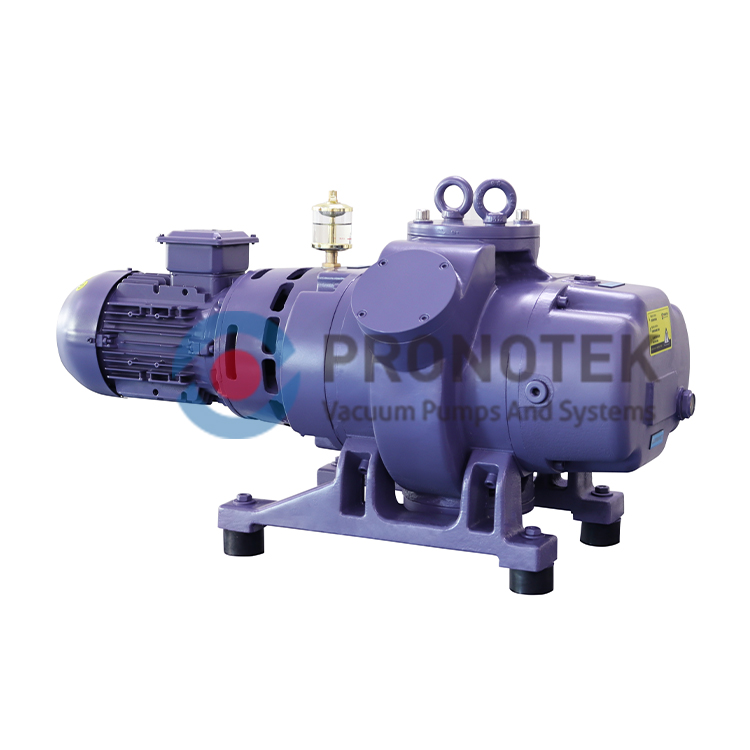

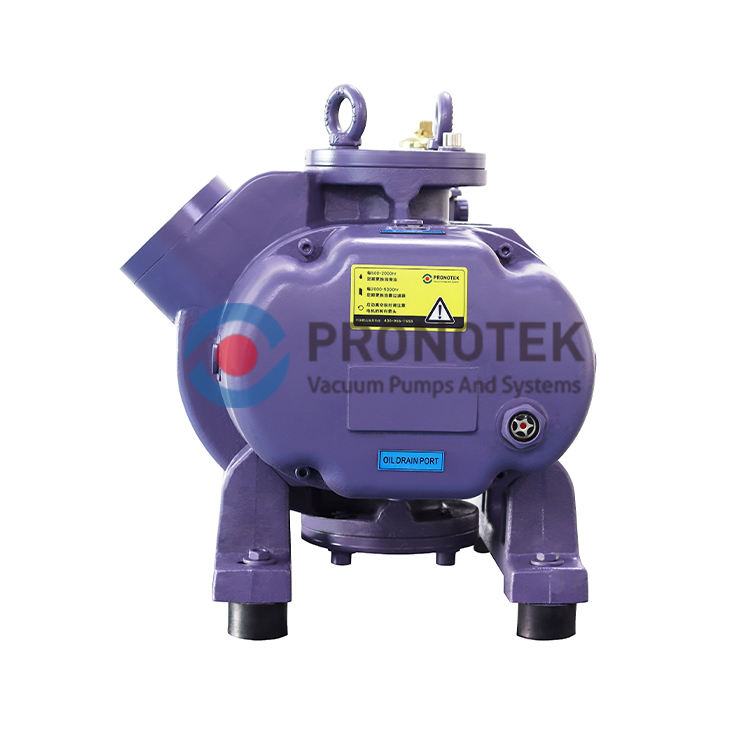

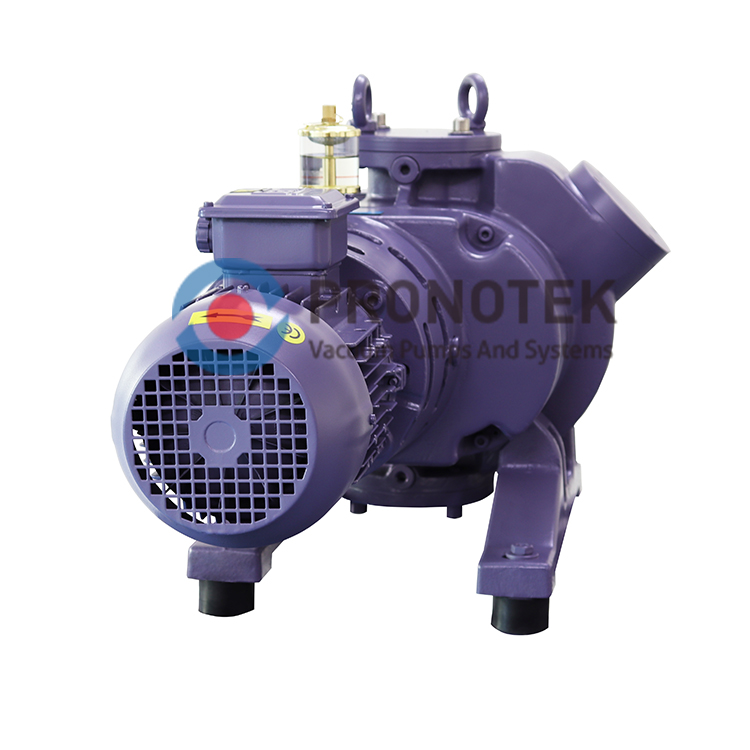

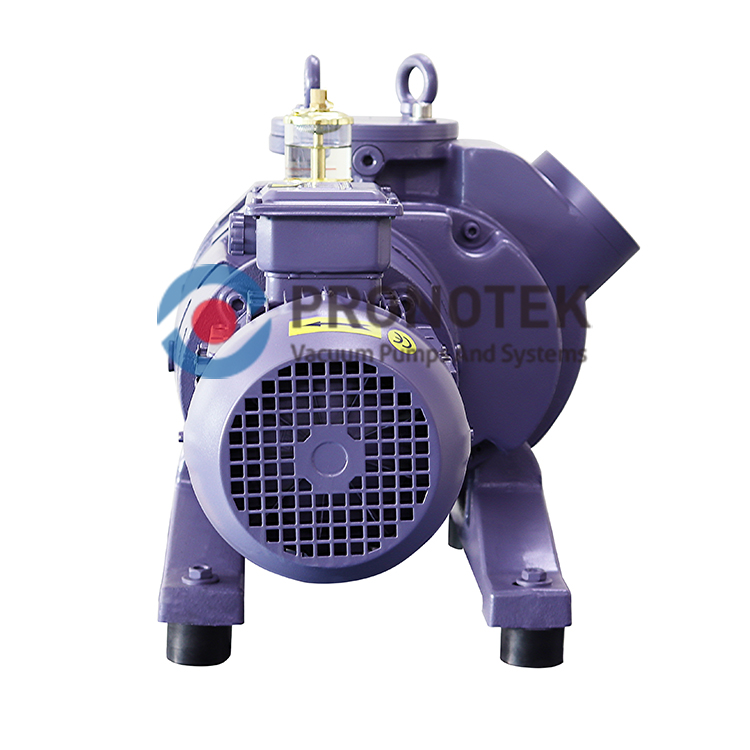

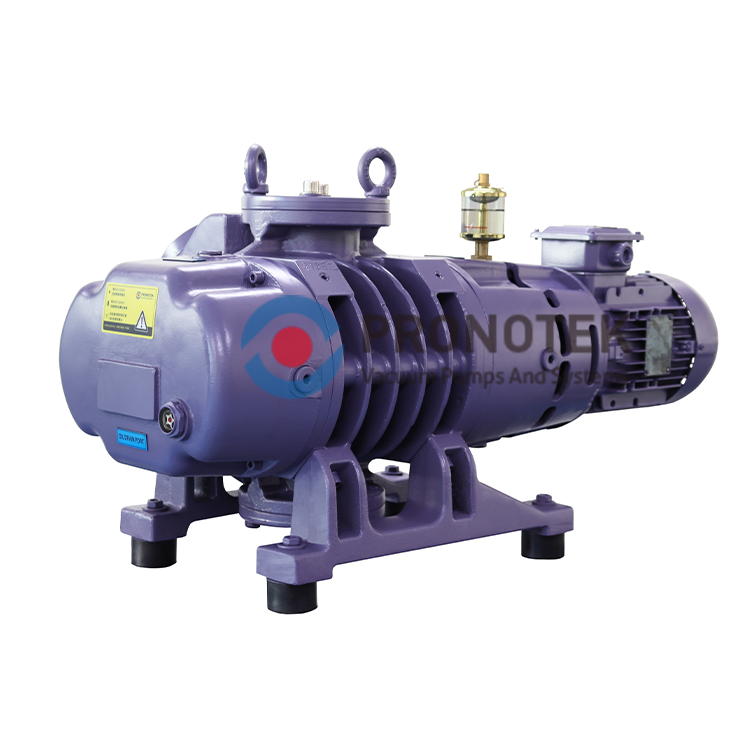

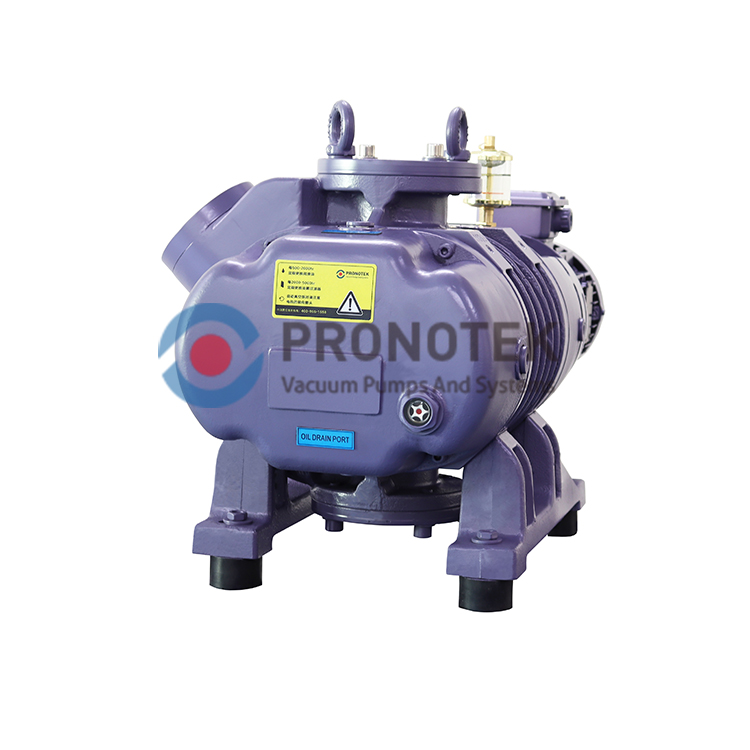

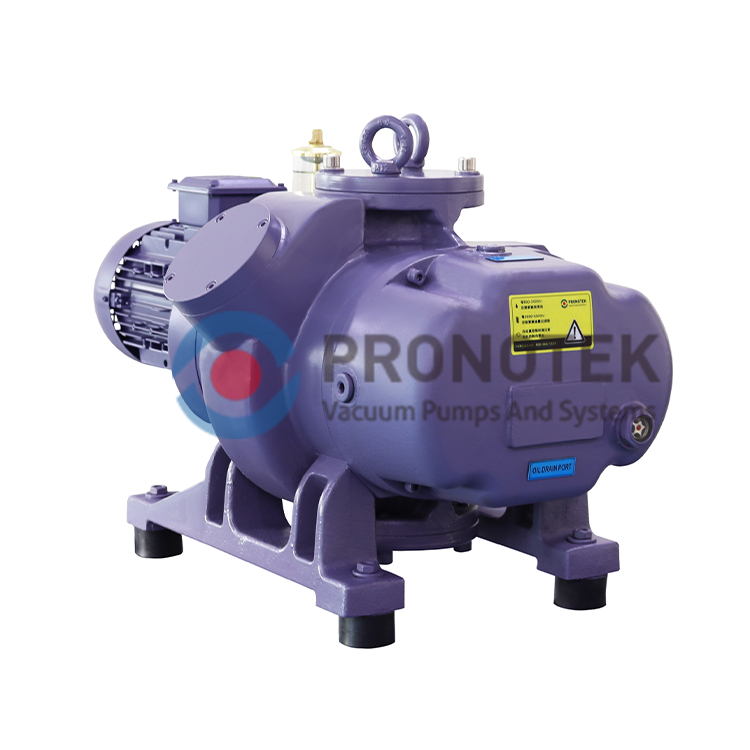

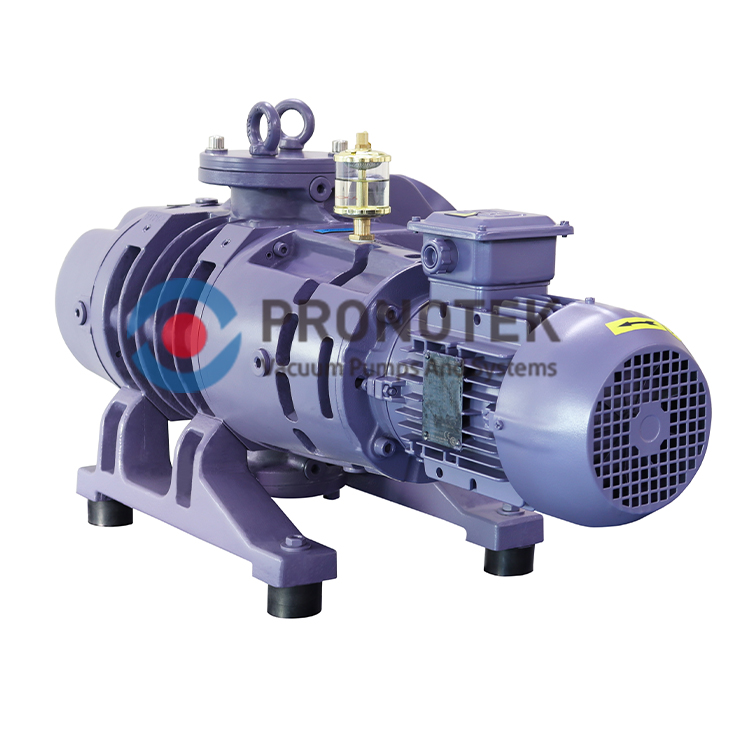

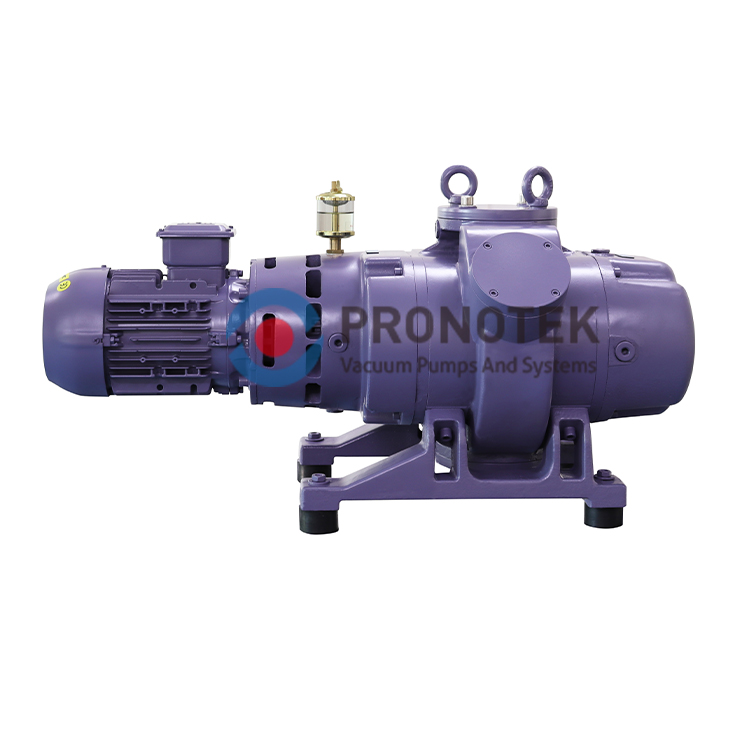

PNK MR-Y Series Roots vacuum pump
Roots pump is one kind of oil-free vacuum pump, requiring the collective use of the vice machine- front stage pumps, which are suitable for all coarse vacuum and high vacuum applications wanting large suction capacity.
Motor power(50Hz): 2.2Kw
Pumping speed (50Hz): 500m³/h
Limit vacuum: 0.5Pa
Do you want to know more?
If you need more product documents and data, please contact us directly at CANKER.
| Technical parameter | Unit | PNK MR 500Y |
|---|---|---|

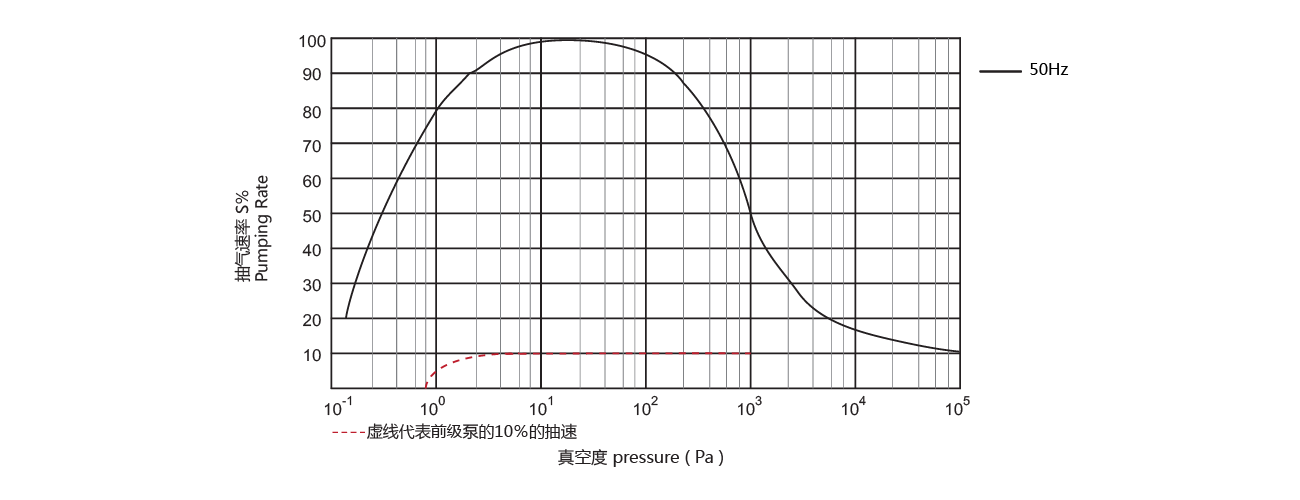

| Pumping speed | m3/h | 500 |
| Limiting partial pressure | Pa | 0.05 |
| Limiting total pressure | Pa | 0.5 |
| Max. Permitted differential pressure | Pa | 8000 |

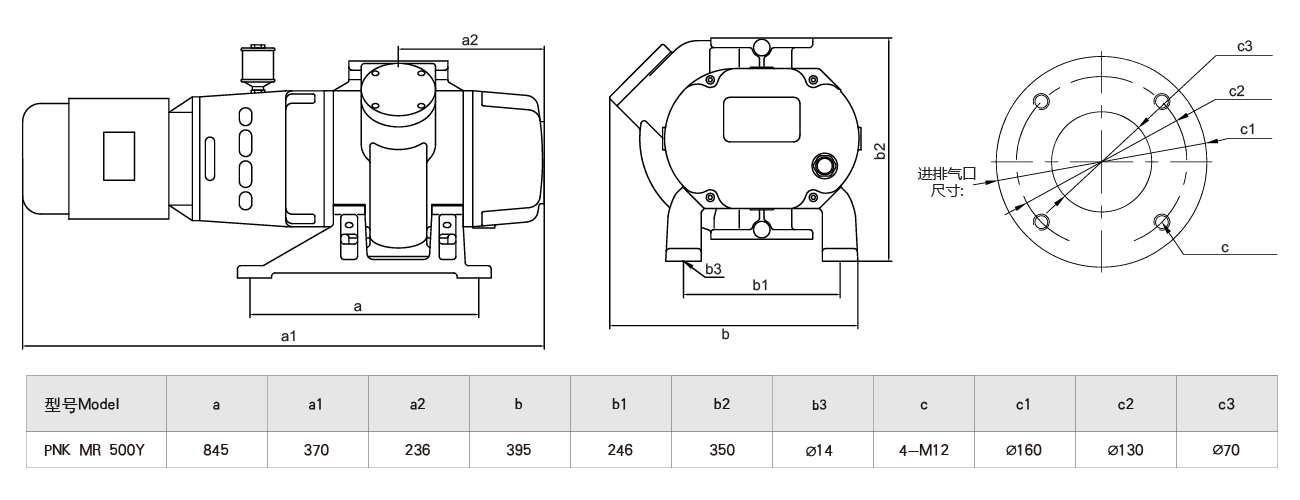

| Air inlet and outlet ventilation | mm | 100 |
| Zero flow maximum compression ratio | max | ≥40 |
| Noise | dB(A) | 68 |
| Power | Kw | 2.2 |
| Speed | r/min | 3000 |
| Cooling method | Natural air cooling | |
| Weight | kg | 155 |
| Recommended front stage pump | PNK SP 0160 |
