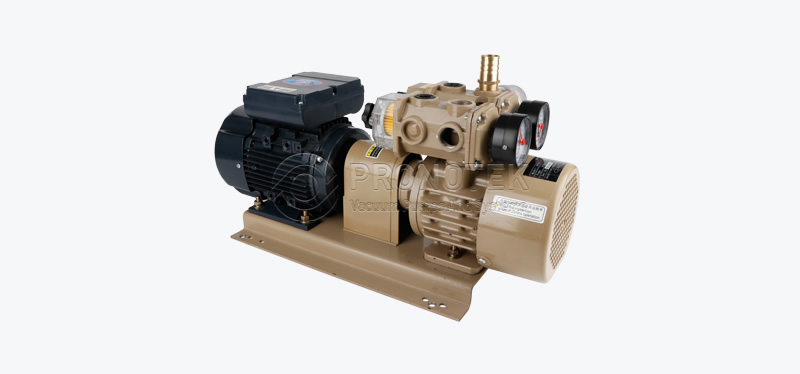

PNK CRP S40 Carbon vacuum pumps
PNK CRP S40 Carbon vacuum pumps

PNK CRP-S Series of carbon vacuum pumps

Modal: PNK CRP S40 Carbon vacuum pumps

Applied 6P motor with low rotate speed 965r/min

More stable operation, lower noise, longer service life

Huge flow design with gas efficiency up to 1500L/min

Motor power:    1.5Kw

Exhaust gas:      575L/min

Extreme vacuum limit:    86kpa

Do you want to know more?

If you need more product documents and data, please contact us directly at CANKER.

Technical parameterUnitFrequencyPNK CRP S40
Rotate speedrmp
1430
Design degassing amountL/min50 Hz575
Extreme vacuumkpa50 Hz86
Normal vacuumkpa
60
Common degassing pressurekpa
60
Pipe connector"
RC3/4
PowerV50 Hz200-380(Triple phase)
Loading motorKw
1.5
Weightkg
50

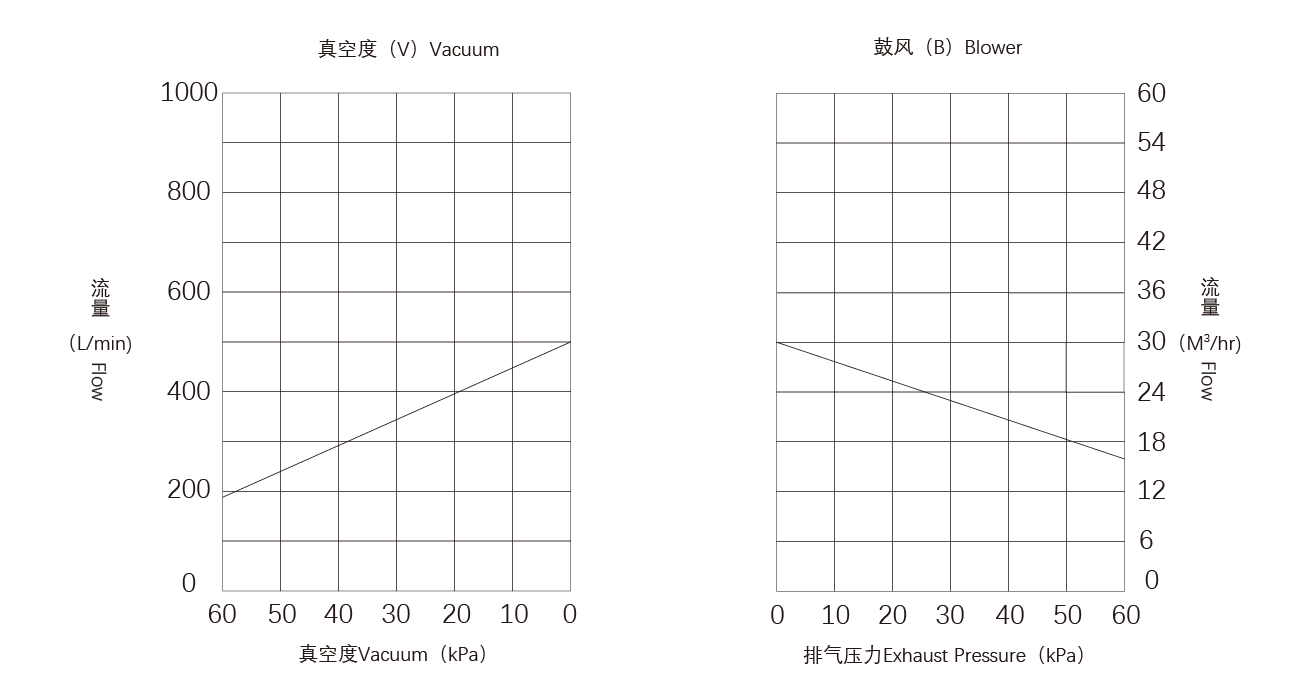

PNK CRP-S40碳片真空泵.png

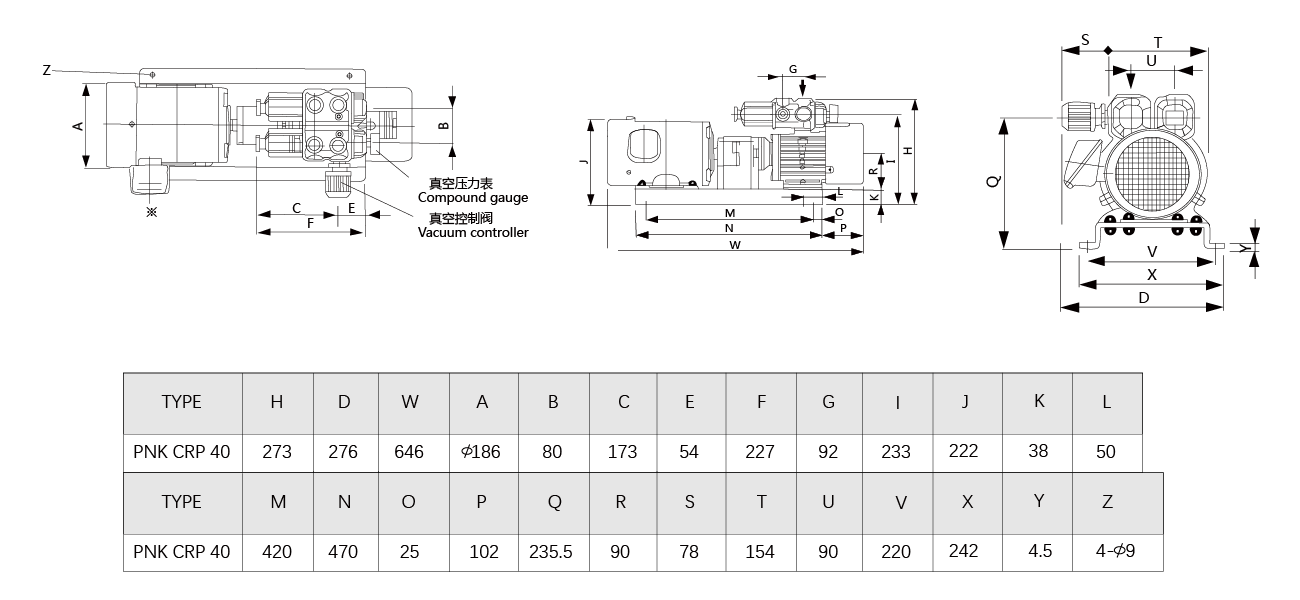

PNK CRP-S40碳片真空泵.png

PNK CRP S40 Carbon vacuum pumps
