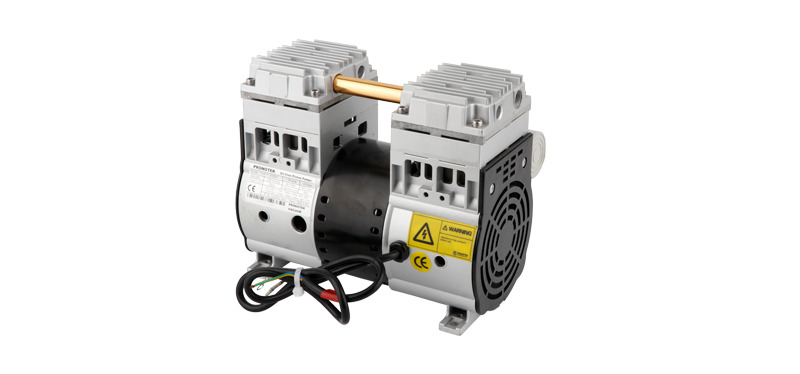

PNK PP-C Series oil free compressor
Motor power(50Hz): 0.6Kw
Pumping speed (50Hz): 146L/min
Extreme vacuum limit: 800Kpa
Do you want to know more?
If you need more product documents and data, please contact us directly at CANKER.
| Technical parameter | Unit | Frequency | PNK PP 2000C |
|---|---|---|---|
| Flow | L/min | 50 Hz | 146 |
| Pressure | Kpa | 50 Hz | 800 |
| Power | Kw | 50 Hz | 0.6 |
| Rotate speed | min-1 | 1450 | |
| Electric current | A | 50 Hz | 2.50 |
| Voltage | V | 50 Hz | 220/380 |
| Foot hole | mm | 10 | |
| Temperature | ℃ | 5-40 | |
| Noise | (ENISO2151) | dB(A) | 60 |
| Weight | kg | 10 | |

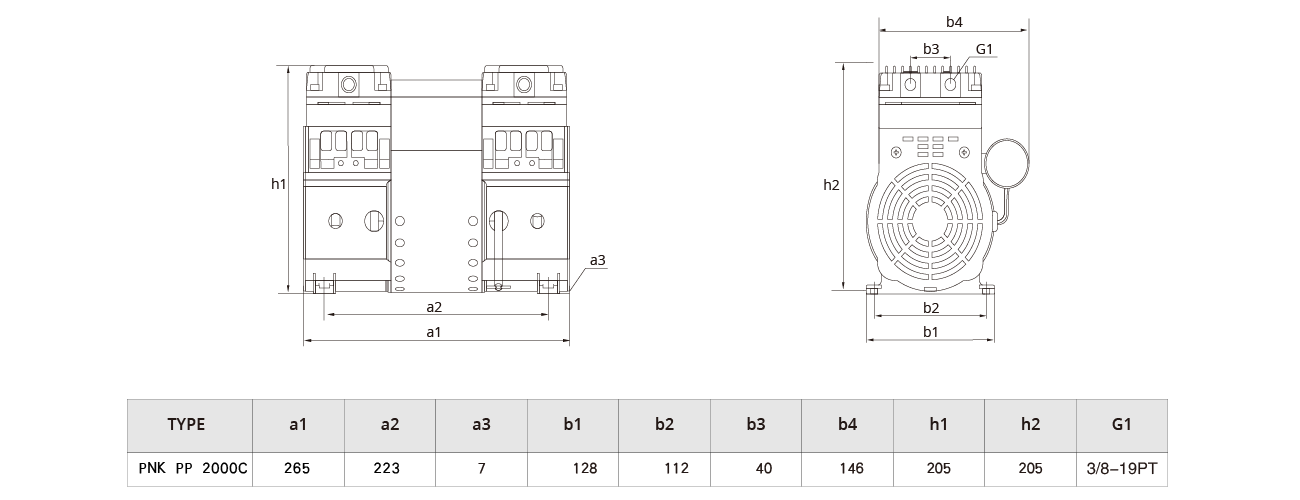

| Mounting dimensions | mm | L204*W112 | |
| Overall dimension | mm | L224*W128*H205 |
