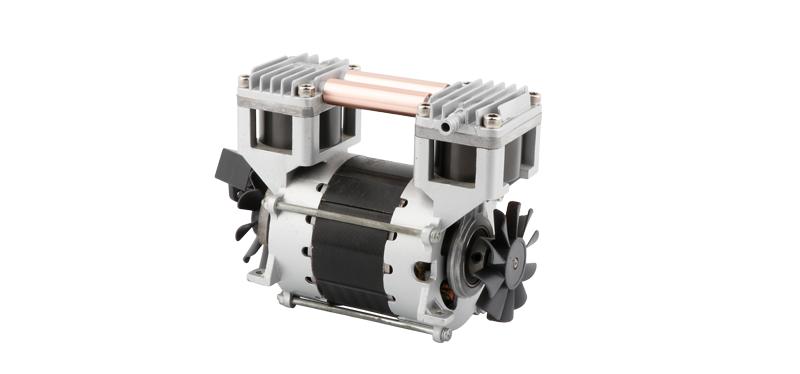

PNK PP-V Series piston vacuum pumps
Motor power(50Hz): 0.90Kw
Pumping speed (50Hz): 220L/min
Extreme vacuum limit: -94Kpa
Do you want to know more?
If you need more product documents and data, please contact us directly at CANKER.
| Technical parameter | Unit | Frequency | PNK PP 2400V |
|---|---|---|---|
| Flow | L/min | 50 Hz | 220 |
| Pressure | Kpa | 50 Hz | -94 |
| Power | Kw | 50 Hz | 0.90 |
| Rotate speed | min-1 | 1450 | |
| Electric current | A | 50 Hz | 3.3 |
| Voltage | V | 50 Hz | 220/380 |
| Foot hole | mm | 7 | |
| Temperature | ℃ | 5-40 | |
| Noise | (ENISO2151) | dB(A) | 75 |
| Weight | kg | 17 | |

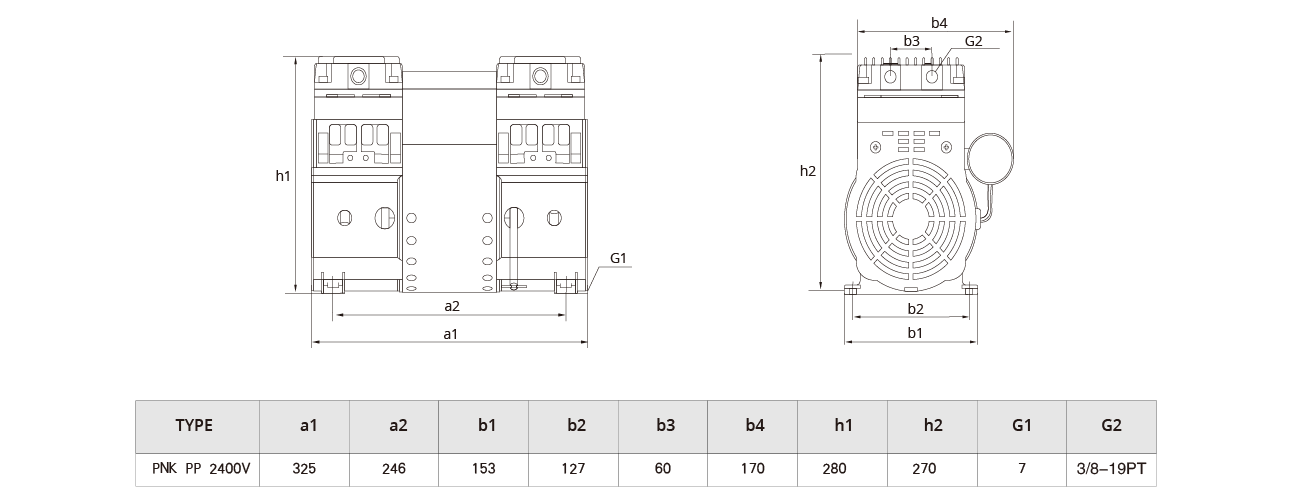

| Mounting dimensions | mm | L246*W127 | |
| Overall dimension | mm | L325*W153*H280 |
