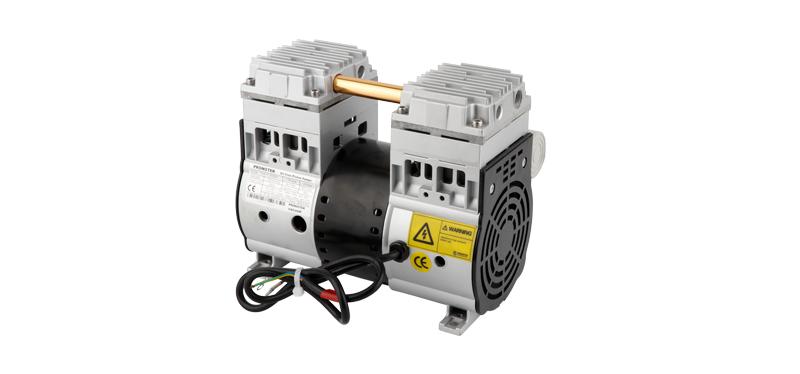

PNK PP-V Series piston vacuum pumps
Motor power(50Hz): 0.5Kw
Pumping speed (50Hz): 120L/min
Extreme vacuum limit: -92Kpa
Do you want to know more?
If you need more product documents and data, please contact us directly at CANKER.
| Technical parameter | Unit | Frequency | PNK PP 1400V |
|---|---|---|---|
| Flow | L/min | 50 Hz | 120 |
| Pressure | Kpa | 50 Hz | -92 |
| Power | Kw | 50 Hz | 0.5 |
| Rotate speed | min-1 | 1450 | |
| Electric current | A | 50 Hz | 1.70 |
| Voltage | V | 50 Hz | 210/235 |
| Foot hole | mm | 6 | |
| Temperature | ℃ | 5-40 | |
| Noise | (ENISO2151) | dB(A) | 58 |
| Weight | kg | 8.0 | |

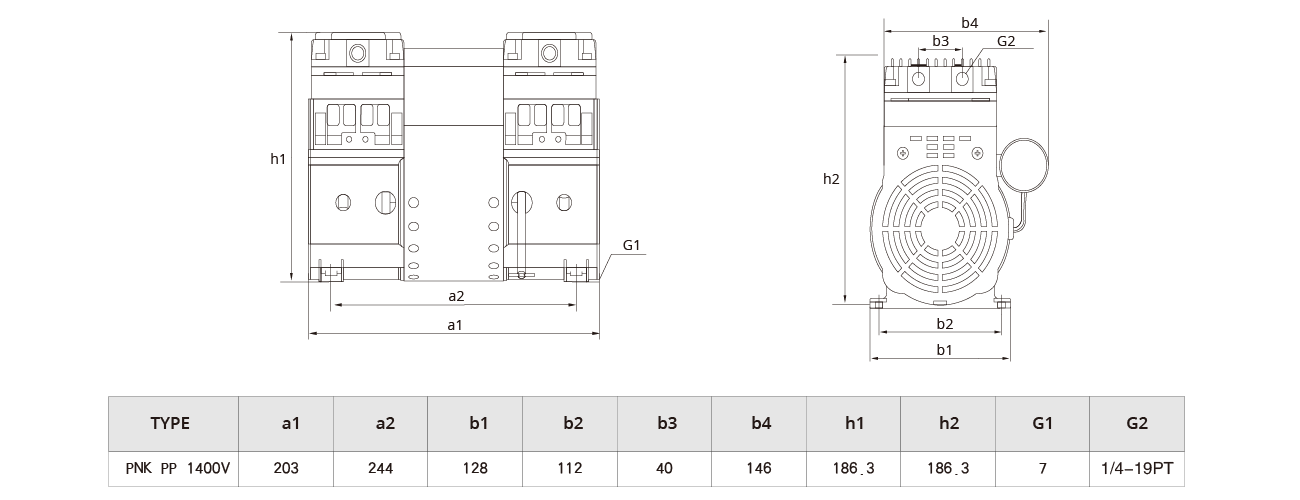

| Mounting dimensions | mm | L203*W112 | |
| Overall dimension | mm | L244*W128*H186 |
