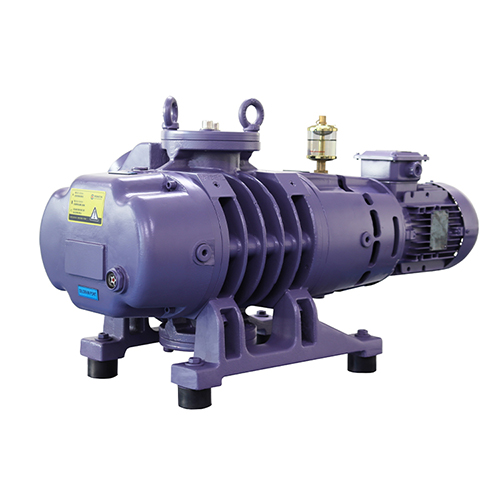

PNK MR 1000Y roots vacuum pump
PNK MR 1000Y roots vacuum pump

PNK MR-Y Series Roots vacuum pump

Modal: PNK MR 1000Y roots vacuum pump

Roots pump is one kind of oil-free vacuum pump, requiring the collective use of the vice machine- front stage pumps, which are suitable for all coarse vacuum and high vacuum applications wanting large suction capacity.

Motor power(50Hz):    4Kw

Pumping speed (50Hz):   1000m³/h

Limit vacuum:     0.5Pa

Do you want to know more?

If you need more product documents and data, please contact us directly at CANKER.

Technical parameterUnitPNK MR 1000Y
Pumping speedm3/h1000
Limiting total pressurePa0.05
Limiting total pressurePa0.5
Max. Permitted differential pressurePa8000
Air inlet and outlet ventilationmm100
Zero flow maximum compression ratiomax≥40
NoisedB(A)68
PowerKw4
Speedr/min3000
Cooling method
Natural air cooling
Weightkg233
Recommended front stage pump
PNK SP 0300
